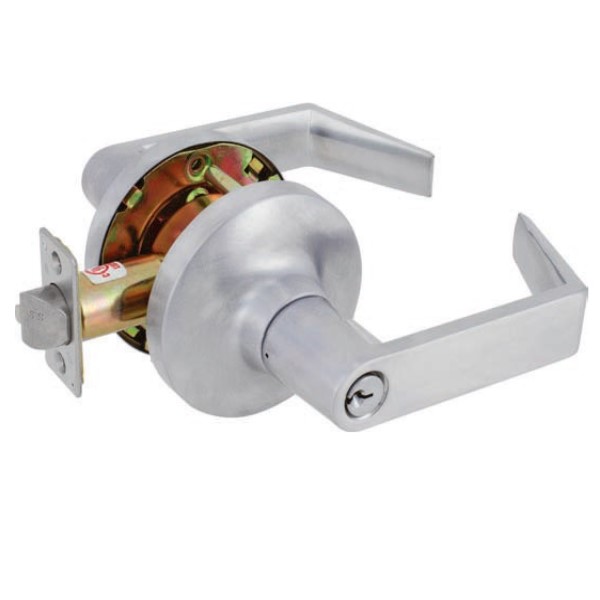

Grade 1 Commercial Lock F Series

Description

Certifications:

• ANSI GRADE 1. ANSI/BHMA A156.2-2003. Exceeds 800.000 cycles.
• UL 3 Hours Fire Rating. UL10C / UBC 7-2 (1197) Positive Pressure Rated
• ADA Comliant. ANSI A117.1. Barrier Free Accessibility
• Hurricane Approved Hardware. Miami-Dade County Approved NOA No. 15-0629.03 +/-90 PSF. FLorida Building Code: 20845
• CALIFORNIA STATE REFERENCE CODE. Formerly Title 19, California. State Fire Marshal (CSFM). Levers return to withing 1/2″ of door face

Specifications:

• Door Fitting: 1-3/8″ ~ 2″ door thick. Factory preset at 1-3/4″. Thru-Bolt CTC: 2-3/4″.
• Exposed Trim: Wrought brass. Pressure cast zinc lever.
• Lock Chassis: Heavy gauge dichromated steel. Zinc dichromated for corrosion resistance.
• Cylinder: Solid brass SC4 6-pins standard. KW1 5-pins optional.
• Latch (UL LISTED): 1/2″ throw, 7/8″ dia. stainless steel latch bolt. 1-1/8″ × 2-1/4″ faceplate. Floating latch design fits both flat or beveled doors 1/8″ in 2″.
• Strike: ASA strike standard (9109). T-Strike optional (9106).
• Handing: Universal, non-handing.
• Screws: Combination screws for both metal and wood doors.
• Keys: 2 brass keys per set. Key as requested (KA, KD, MCK, MK, GMK).
• IC Core: FK Series, e.g. 500FK for Entrance. FSIC compatible with BEST profile 6-pins and 7-pins. LFIC (Schlage Profile) available for CT and SD levers.
• Electrified (UL LISTED): Model 504FSE. Failure Secure Type, Input DC-12V/24V.
